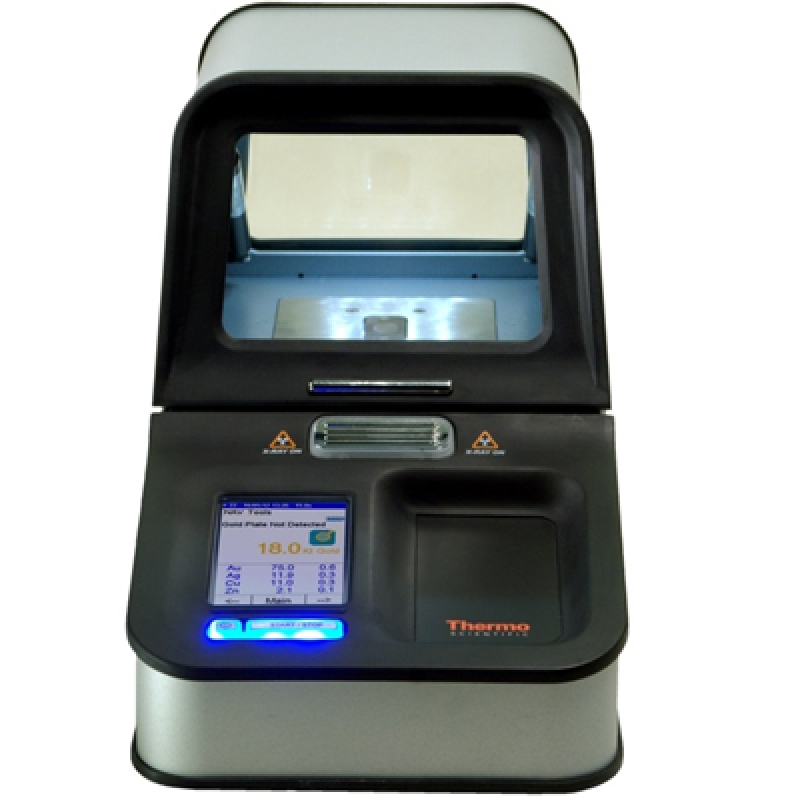

Thermo Scientific Niton DXL Precious Metal Analyzer

Description

Thermo Scientific Niton DXL Precious Metal Analyzer Specifications.
Physical & Mechanical
•CC Weight: 17 lb (7.7 kg)
•Overall Dimensions (WxDxH): 8.1 × 15.6 × 10.4 in (206 × 396 × 265 mm)
•Test Chamber Dimensions: 7.2 × 6.9 × 5.2 in (184 × 172 × 133 mm)
X-Ray & Detector
•X-Ray Tube: Silver-anode (Ag), up to 45 kV, 80 µA maximum
•Detector: High-performance Si-PIN semiconductor
Electronics & Performance
•CPU / Processing: 400 MHz ARM 11 CPU; 300 MHz DSP; 80 MHz ASIC DSP
•MCA Channels: 4096
•Memory: 64 MB system + 128 MB user storage
•Data Capacity: Over 10,000 readings with full spectra
Display & User Interface
•Display: Color touch-screen
•Input Methods: On-screen keyboard, user-programmable pick lists
•Positioning: Internal CCD camera for precise sample alignment
Analytical Capabilities
•Standard Elemental Range: Up to 22 elements, covering all precious
metals (e.g. gold, silver, platinum, palladium, rhodium, iridium, ruthenium),
plus major alloying elements and heavier contaminants like lead and
cadmium
•Gold-Plating Detection: Thermo Scientific AuDIT™ technology flags
probable gold plating (e.g. vermeil, plated copper, steel, tungsten),
including detection of nickel underlayers and surface layers up to 8 µm thick
Standard Accessories
•7.2 V 4-cell lithium-ion battery pack (charges inside unit when plugged
in)
•110/220 VAC adapter (Worldwide compatible)
•USB PC connection (with Thermo Fisher Niton Data Transfer—NDT™
software)
•8 mm measurement collimation
•Internal CCD camera
•Adhesive tack for sample stabilization
•Spare puncture-resistant X-ray windows
•Warranty and user-security via password protection
